LVL23JV Vertical 1 Player Upright Arcade Cabinet Kit for up to 23" screens (HAPP or SANWA)

LVL23JV Vertical 1 Player Upright Arcade Cabinet Kit for up to 23" screens (HAPP or SANWA)

Regular price $514.99
Sale Price: $437.74.
Regular price Sale price 0.0
Sale Sold out
Free Shipping to the continental USA.
Style
Button Count

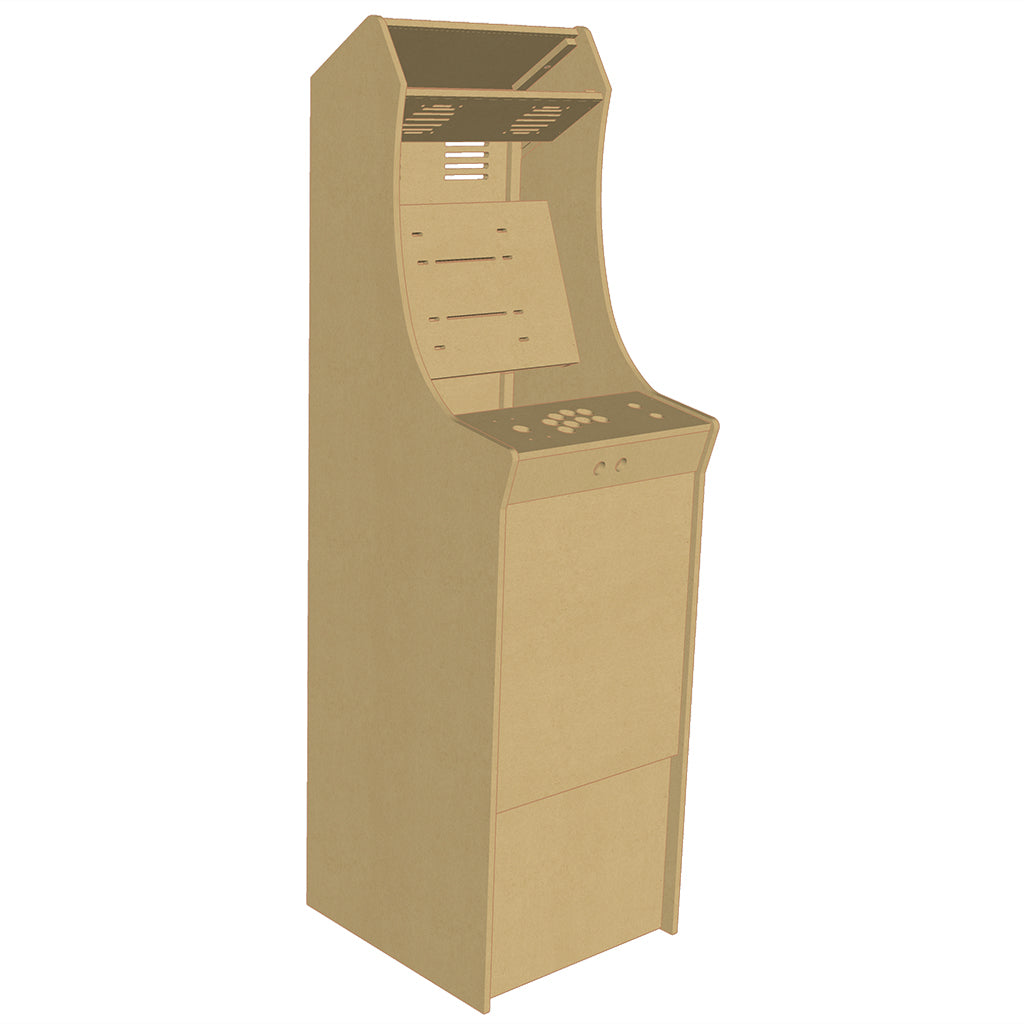

LVL23JV Vertical Upright Arcade Cabinet Kit for up to a 23in Screen by LEP1 Customs

*EASY TO ASSEMBLE WITH ASSEMBLY INSTRUCTIONS AND PICTURES*

Perfect for the Raspberry Pi, 60-in-1, 412-in-1, Game Elf, or other game system using a vertically mounted monitor.

This vertical kit contains the pre-cut, routed, and pre-drilled MDF for a DIY Bartop/Tabletop Arcade Cabinet, and is the ONLY kit to feature the following:

  • VESA Mounting Panel for up to a 23" Widescreen TV or 23" Widescreen Monitor (mounted vertically)
  • Pre-routed integrated marquee bracket
  • Pre-routed baton indents for easier assembly
  • Adjustable horizontal monitor positioning
  • Pre-drilled holes for mounting two 4" speakers
  • Pre-drilled holes for mounting buttons and one Joystick
  • Pre-drilled holes for cabinet assembly
  • Numbered baton supports and the screws for basic assembly

To assemble the basic cabinet, all you need to supply is the wood glue and a screwdriver. That's right, all parts needed to assemble the basic cabinet are included (except for the wood glue)! For a complete assembly, we suggest the following parts (not included):

  • Up to 23" Widescreen LCD Monitor (mounted vertically)
  • Four screws for LCD VESA Mount (four or eight washers are suggested)
  • One Joystick (choose HAPP or SANWA mounting pattern)
  • Four screws, four washers, and four nuts for joystick mounting
  • Up to twelve HAPP Standard Arcade Buttons [1 1/8" or 28mm] in HAPP style or up to eight SANWA Action Buttons [30mm] and four Coin/Start Buttons [24mm] in SANWA style (depends on model ordered)
  • Two 4" Speakers
  • Eight screws, eight washers, eight nuts for speaker mounting
  • Game system (Raspberry Pi, 60-in-1, 412-in-1, Game Elf, Pandora's Box, Mini PC, etc.)
  • Power supply
  • Wiring (as needed by Game System, speakers, and monitor)
  • Marquee insert (listing photo shows color laser printed paper)
  • Plexiglass to cover LCD (optional/personal taste)
  • Marquee backlight (optional/personal taste)
  • Light sandpaper
  • Primer
  • Paint

Dimensions(approx):

Interior Width: 18"

Exterior Width: 19"

Exterior Height: 63 3/4""

Exterior Depth: 20 1/4"

Weight: 120b
