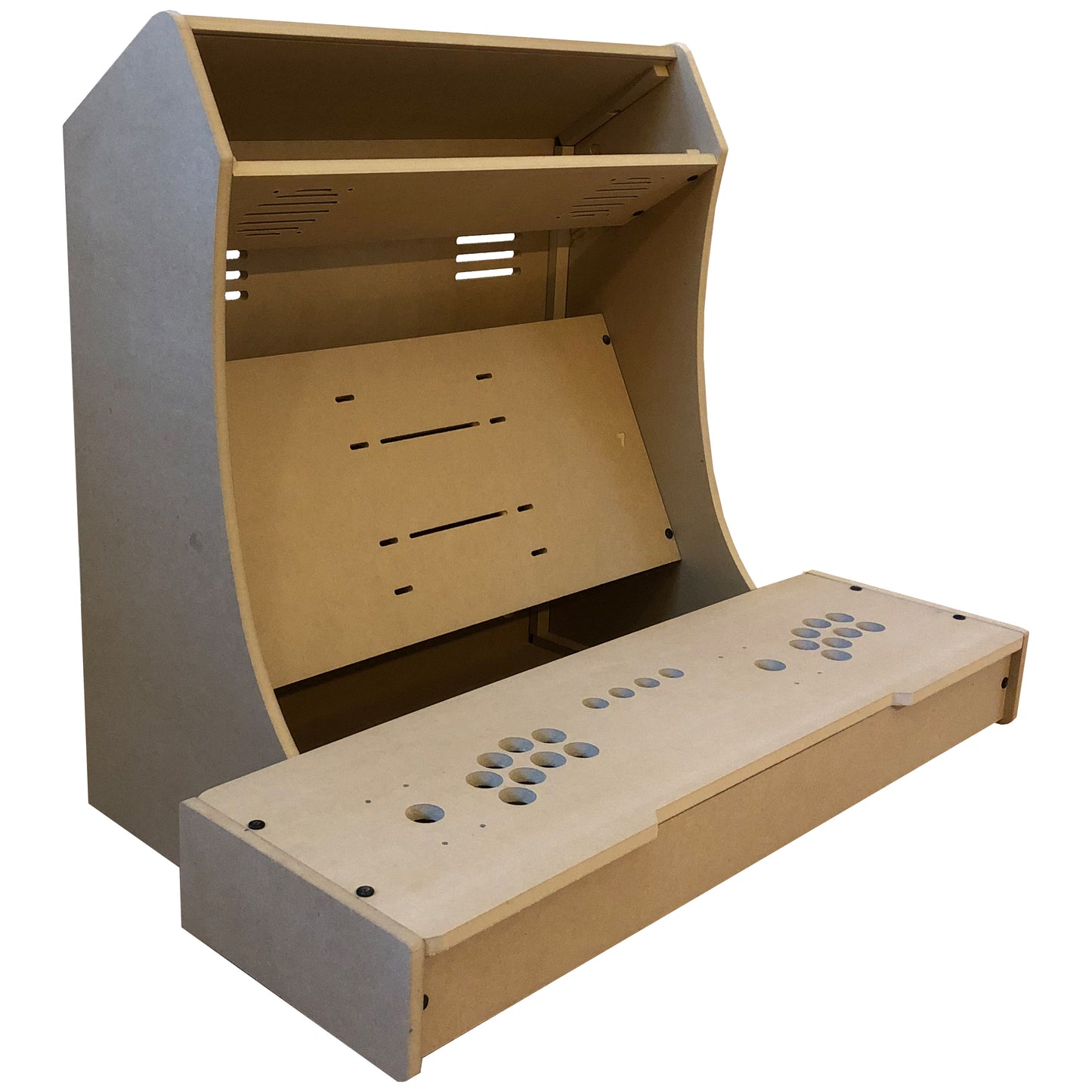

LVL27X2 Bartop / Tabletop Arcade Cabinet Kit for up to a 27” Screen by LEP1 Customs
*EASY TO ASSEMBLE WITH ASSEMBLY INSTRUCTIONS AND PICTURES*
This enormous kit contains the pre-cut, routed, and pre-drilled MDF for a DIY Bartop/Tabletop Arcade Cabinet, and is the ONLY kit to feature the following:
VESA Mounting Panel for up to a 27" Widescreen TV or 27" Widescreen Monitor (Up to 25.5" wide)
- Pre-routed integrated marquee bracket
- Pre-routed baton indents for easier assembly
- Adjustable horizontal monitor positioning
- Pre-drilled holes for mounting two 4" speakers
- Pre-drilled holes for mounting two HAPP or Sanwa Joysticks and buttons
- Pre-drilled holes for cabinet assembly
- Numbered baton supports and the screws for basic assembly
To assemble the basic cabinet, all you need to supply is the wood glue and a screwdriver. That's right, all parts needed to assemble the basic cabinet are included (except for the wood glue)!
For a complete assembly, we suggest the following parts (not included):
- Up to 27" Widescreen LCD Monitor (cabinet has 25.5" internal width)
- Four screws for LCD VESA Mount (four or eight washers are suggested)
- Two Joysticks with HAPP mounting pattern or two Joysticks with Sanwa mounting pattern (depends on model ordered)
- Eight screws, eight washers, and eight nuts for joystick mounting
- Up to twenty HAPP Standard Arcade Buttons [1 1/8" or 28mm] or up to eighteen Sanwa Style Arcade Buttons [30mm] and four Sanwa Style coin/start buttons [24mm] (depends on model ordered)
- Two 4" Speakers
- Eight screws, eight washers, eight nuts for speaker mounting
- Game system (Raspberry Pi, Game Elf, Pandora's Box, Mini PC, etc.)
- Power supply
- Wiring (as needed by Game System, speakers, and monitor)
- Marquee insert
- Plexiglass to cover LCD (optional/personal taste) Marquee backlight (optional/personal taste)
- Light sandpaper
Interior Width: 25.5"
Exterior Width: 35"
Exterior Height: 29 3/4"
Exterior Depth: 20 1/4"
